INFRARED CAMERAS AND SYSTEMS

Pyrobrand is delighted to have aligned with Workswell. A European-based innovative developer and manufacturer specialising in advanced thermal imaging technology with full in-house development, with high-end expertise in the field of designing and developing the products.

The company is focused on supplying the unmatched quality products and solutions to variety of customers. The inherent part of the business is consulting service, sales and after-sales support. Thermal imaging products and systems from Workswell enhance the manufacturing processes of numerous European car companies

If you drive a recent model produced by BMW, Škoda, Renault, Kia and others it is likely that one of Workswell’s thermal imaging systems played a part in the creation of your car’s components.

Workswell also has introduced several unique technologies for UAV and UGV such a the GIS 320 – OGI (optical gas imaging), WIRIS Enterprise and WIRIS Pro that are the most advanced drone thermal imaging cameras for industrial inspection, search&rescue and R&D as well as WIRIS Agro, patented agricultural camera evaluates Crop Water Stress Index (CWSI).

FEATURED PRODUCT

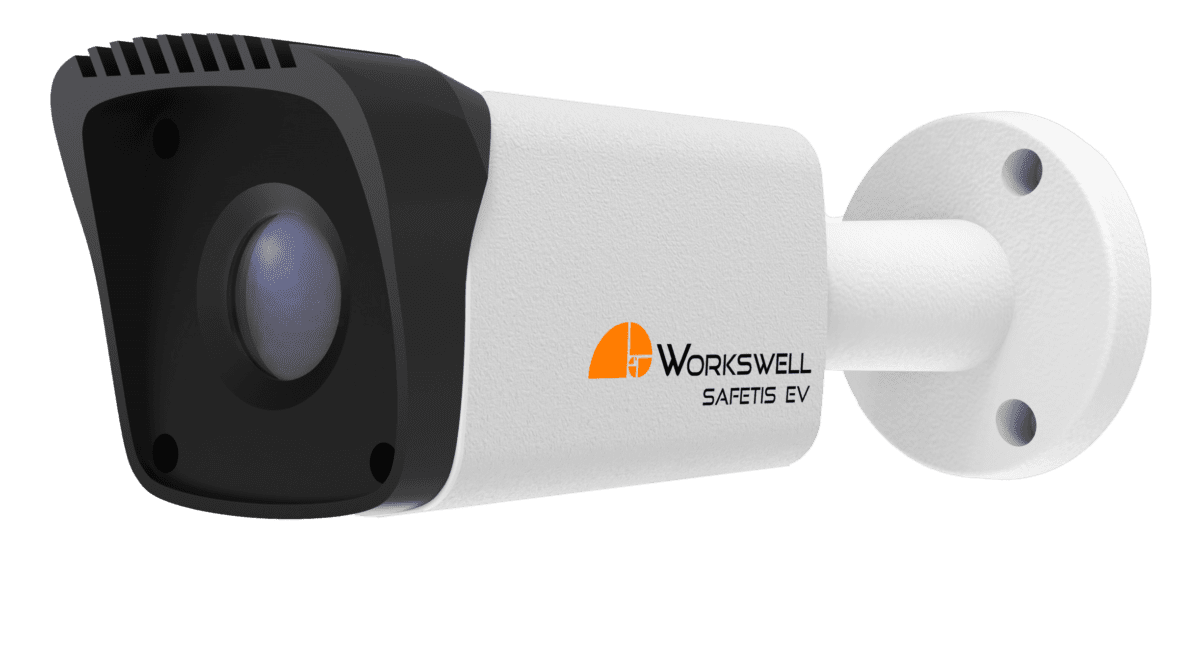

SAFETIS EV-C

FIRE SAFETY THERMAL CAMERA SENSOR

The SAFETIS EV-C advanced thermal camera is equipped with a state-of-the-art array of 19,200 active temperature sensors, delivering unmatched real-time detection capabilities. It provides comprehensive coverage across a wide temperature range from -10 °C to 400 °C (14 °F to 752 °F), with an exceptional temperature sensitivity of 0.1 °C.

The device’s prowess in rapid detection is highlighted by its ability to perform automatic real-time area scans up to nine times per second, thereby ensuring continuous monitoring without lapses.

Central to the SAFETIS EV-C’s design is its sophisticated dual alarm detection system. This system allows for the configuration of two distinct alarm thresholds per region of interest (ROI), supported by digital/relay outputs. This feature facilitates immediate and precise response mechanisms in varying critical conditions.

Detection Capabilities

SAFETIS EV-C is equipped with 19,200 active temperature sensors, providing extensive and detailed environmental monitoring, thereby enhancing the ability for rapid fire detection. This dense network of sensors enables the device to effectively identify and respond to security risks, increasing overall protection and safety in the monitored area.

Smart Evaluation

SAFETIS EV-C is equipped with a built-in SMART evaluation system, meaning its operating system is standalone and does not require connection to any additional computer or hardware to function. This feature allows the device to operate efficiently and independently, simplifying installation and reducing the need for additional equipment.

Double Alarm Detection

SAFETIS EV-C features a two-level alarm system for quick temperature detection, allowing users to customize settings including digital or relay outputs for each region-of-interest (ROI), which includes both warning and critical alarms. This functionality offers customizable protection and an effective response to temperature anomalies, enhancing safety and response capabilities in the event of risks.

Control Protocol

SAFETIS EV-C communicates with other devices using the standard Modbus RTU protocol, either through the RS485 wired interface or Ethernet network. Although a special service software for setting up SAFETIS EV-C is included in the package, customers can use any other compatible software due to the universality of the Modbus RTU protocol.

Area Scanning

The real-time automatic scanning feature allows SAFETIS EV-C to continuously monitor and analyse the environment, performing up to 9 scans per second. This high scanning rate ensures high accuracy and immediate response to any changes in the monitored area, which is key for effective prevention and detection of risks.

Further enhancing its operational autonomy, the SAFETIS EV-C integrates an onboard SMART evaluation system that negates the need for external computing hardware.

Built to endure the toughest industrial environments, the SAFETIS EV-C is encased in a rugged aluminium body and boasts an IP65 rating for dust and water resistance. Its operational temperature range of -5 °C to 50 °C (32 °F to 122 °F) and storage temperature range of -35 °C to 80 °C (-22 °F to 140 °F) attest to its resilience and durability.

Configuration flexibility is a hallmark of this device, offering user-friendly setup options through desktop software or a webserver. This ensures secure, efficient, and adaptable deployment. The camera supports extensive customization, including up to 32 ROIs with dual alarm capabilities, 180° image rotation, and intuitive LED signalization for immediate status indication.

Temperature range

up to 400 °C or 753 °F

Webserver integrated

with evaluation functions

Dual Alarm Detection

(warning and critical alarm)

Real-time detection

9x times per second

No Additional HW Needed

onboard evaluation

Heartbeat pulse signal for camera alive check

WORKSWELL PRODUCT CATALOGUE

To download the full Workswell product catalogue, click on the button below.

Download Catalogue
